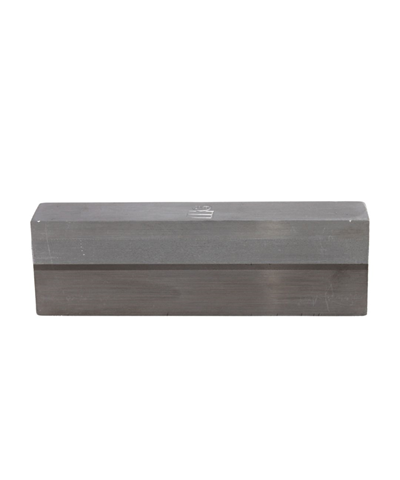

Weldural 34 x 24 mm
Material id:
1002772
Width
34 mm
Height
24 mm
Length
3800 mm
Weight
≈ 4.61 kg/m
Stock
Stock material
Weldural
Used where demands for tensile strength combined with high temperatures.
We are not liable for items out of stock. The specified weight is theoretical. Please contact us if you have any further enquiries.
Technical Specifications
Alloys
| Density | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Zr | Other | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name | g/cm3 | Max | Max | Min | Max | Min | Max | Max | Max | Max | Max | Min | Max | Max | Rest |
| Weldural | 2.84 | 0.3 | 0.4 | 5.8 | 6.8 | 0.2 | 0.4 | 0.1 | 0.05 | 0.1 | 0.1 | 0.1 | 0.25 | 0.15 | Al, Aluminium |
Aluminium Properties
| Thermal conductivity | Coefficient of thermal expansion | Electrical conductivity | |
|---|---|---|---|
| Alloy | W/m*K | µm/(m*K) | %IACS |
| Weldural | 130 | 22.5 | 30 |
