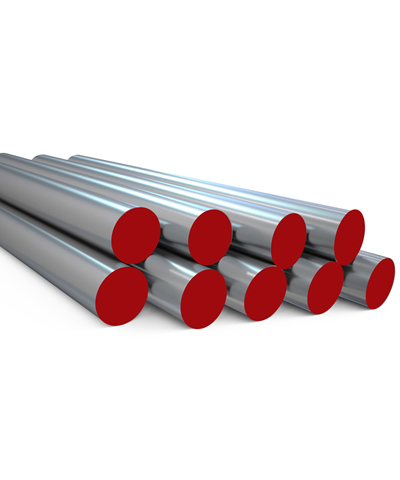

EN AW-5083 15 x 3000 mm
Material id:
1141069
Diameter
15 mm
Length
3000 mm
Temper
H112
Weight
≈ 0.47 kg/m
CO2e (avg)
≈ 8.7 kg/kg
Stock
Stock material
EN AW-5083
It is sea water resistant and has an average strength, high corrosion resistance and good for welding Medium for anodizing
Â
We are not liable for items out of stock. The specified weight is theoretical. Please contact us if you have any further enquiries.
Technical Specifications
Alloys
| Density | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name | g/cm3 | Max | Max | Max | Min | Max | Min | Max | Min | Max | Max | Max | Max | Rest |
| EN AW-5083 | 2.66 | 0.4 | 0.4 | 0.1 | 0.4 | 1 | 4 | 4.9 | 0.05 | 0.25 | 0.25 | 0.15 | 0.15 | Al, Aluminium |
Aluminium Properties
| Thermal conductivity | Coefficient of thermal expansion | Melting point | Elastic modulus | Electrical conductivity | |||
|---|---|---|---|---|---|---|---|
| Alloy | Temper | W/m*K | µm/(m*K) | min °C | KN/mm2 | %IACS | |
| EN AW-5083 | Hx2 | 117 | 23.8 | 580 | 640 | 71 | 28.5 |
| EN AW-5083 | Hx4 | 117 | 23.8 | 580 | 640 | 71 | 28.5 |
| EN AW-5083 | Hx6 | 117 | 23.8 | 580 | 640 | 71 | 28.5 |
| EN AW-5083 | Hx8 | 117 | 23.8 | 580 | 640 | 71 | 28.5 |
| EN AW-5083 | Hx9 | 23.8 | 580 | 640 | 71 | ||
| EN AW-5083 | O | 117 | 23.8 | 580 | 640 | 71 | 28.5 |
Mechanical properties
| Dimension | Tensile strength (Rm) MPa | Proof stress (Rp0,2) | Elongation | Brinell Hardness | Elongation A50mm | |||
|---|---|---|---|---|---|---|---|---|
| Norm | Alloy | Temper | Max | Rm N/mm2 | MPa | % min | HBS | % min |
| EN 755-2:2013 | EN AW-5083 | H112 | 200 | 270 | 125 | 12 | 70 | 10 |
